Ricoh Geo-imaging

Parts and Specifications

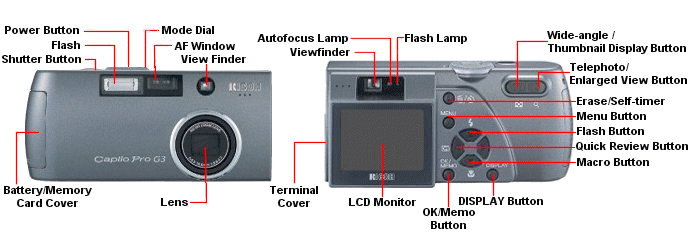

Names of Parts


Major Specifications


ITEM

DESCRIPTION

RECORDING FORMAT Still: JPEG (Exif 2.2) DCF "Design rule for Camera File system", DPOF support
Text: TIFF(MMR system, ITU-T.6)
Motion: AVI(Open DML Motion JPEG)
Sound: WAV(Exif 2.2)
VIDEO SIGNAL METHOD NTSC/PAL switchable
RECORDING MEDIA SD Memory Cardô(3.3V 8/16/32/64/128/256/512MB)
MultiMediaCardô (16/32/64MB), Built-in memory (8MB)
CCD 1/2.7-inch CCD with 3.34 million square pixels(effective 3.24 million pixels)
RESOLUTION Still: 2048x1536/1280x960/640x480
Text: 2048x1536/1280x960
Motion: 320x240/160x120
RECORDING MODES Still (Continuous, S-Continuous, M-Continuous),
Scene (Portrait, Sports, Landscape, Night Scene, Text, High-Sensitivity),
Motion, Sound
PICTURE MODES Fine/Normal
STORAGE CAPACITY
(No. of pictures)
(Internal 8MB Memory)*1
Still: 4(2048x1536 Fine),
8(2048x1536 Normal), 8(1280x960 Fine),
14(1280x960 Normal), 43(640x480 Normal)
STORAGE CAPACITY (Time)
(Internal 8MB Memory)*2
Motion: 18 seconds (320x240), 65 seconds (160x120)
Sound: 14 minutes 2 seconds
LENS Focal range f:5.5-16.5mm (equivalent to 35-105mm for 35mm film camera)
Brightness F:2.6(W) - 4.7(T)
Len Structure: 6 glass elements in 5 groups
DIGITAL ZOOM x3.4 (Maximum x10.2 in combination with optical zoom)
SHUTTER Still: 8,4,2,1-1/2000sec.(mechanical/electronic shutter)
Motion: 1/30-1/2000sec.(electronic shutter)
OBJECT DISTANCE Approximately 0.3m-∞ (Macro:approximately 0.01m-∞, Telemacro: approximately 0.13m-∞)
ISO SENSITIVITY Auto (equivalent to ISO125, ISO200, ISO400, ISO800)
VIEWFINDER Real-image optical zoom finder
LCD MONITOR 1.8 inch Translucent Amorphous Silicon TFT LCD(approx. 80,000 pixels)
FLASH Auto (automatic flash in backlight), Red-eye Reduction, On, Slow Synchro, Off
FOCUS Autofocus, Manual Focus, Fixed Focus (Snap), ∞
EXPOSURE ADJUSTMENT TTL-CCD photometric system: Multi (256 segments), Center Weight, Spot
EXPOSURE COMPENSATION Manual compensation (+2.0 to -2.0 EV in 1/3EV steps)
WHITE BALANCE Auto, Daylight, Overcast, Tungsten Light, Fluorescent Light,
Manual (One Push), White
SELFTIMER Delay: Approximately 10sec., 2sec.
CARD SLOTS CF Card Slot (Wireless LAN, GPS, Bluetooth)*3 x 1
SD Card Slot (Memory Card) x 1
PC INTERFACE USB 1.1 (compatible with PCs with Windows 98/98SE/2000/Professional/Me/XP
pre-installed)
AV INTERFACE Audio Out/Video Out
POWER SOURCE Optional rechargeable lithium-ion battery,
2AA batteries (NIMH) or optional AC adapter
SHOOTING CAPACITY*4 Using DB43: approximately 3,500 pictures (continuous),
approximately 350 pictures (normal)
DIMENSIONS 124.0 x 43.0 x 56.0mm (excluding projections) (W x D x H)
WEIGHT Approximately 180g (6.35oz.) (excluding battery, SD memory card, hand strap)
OPERATING TEMPERATURE 0-40 Cs
    *1: General guide for still-picture recording capacity.
    *2: Maximum 30 seconds per shot (320x240), maximum 120 seconds per shot (160x120)
    *3: CF Memory Card is not supported.
    *4: Under Ricoh measurement parameter (room temperature). Actual performance may vary depending on the conditions of use.
